Electricity Heating Fabric Stenter Machine Open Width Textile Finishing Stenter

Name: Electricity Heating Fabric Stenter Machine Open Width Textile Finishing Stenter
Brand: VIROCK
Price: 1 USD

Electricity Heating Fabric Stenter Machine Open Width Textile Finishing Stenter Manufactures

Brand Name : VIROCK

Model Number : VK-NB

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIABLE

Payment Terms : L/C, T/T, D/A

Supply Ability : 4 sets per month

Delivery Time : in 90 days

Packaging Details : Wooden case

Heating system : Electricity

Entry rail type : Horizontal type

Rail lubrication way : Non-lubricated

Fabric entry frame : Simple entry

No. of chamber : As demand

Cooling way : Air-jet

Door thickness : 150mm

No. of exhaust : According to chamber No.

Contact Now

Open width textile finishing stenter , Electricity heating

1. Main technical data:

Machine roller width:	1400-3800mm	Fabric working width:	1200-3600mm
Heating source:	nature gas / oil / electricity / steam	Width adjustment range:	700-3600mm
Chambers quantity.	2-10	Temperature range of chambers:	100-230℃
Fabric held by:	clip/pin/combined	Air pressure:	above 0.5mpa
Overfeed range:	-10% to 30%	Installed power:	Approx 120Kw

2. Functions of stenter machine:

1) Heat setting is done by the stenter for special 3-mesh textile.

2) Width of the 3-mesh textile is controlled.

3) Moisture of the 3-mesh textile is controlled.

4) GSM of the3-mesh textile is controlled.

5) Fabric is dried by the stentering process.

6) Shrinkage property of the 3-mesh textile is controlled.

3. Main Characteristics:

1) Horizontal chain.

2) Non-lubricated rail.

3) Anti pin-off device,

4) 6/3M entry rail.

5) With accessories for knits.

Electricity Heating Fabric Stenter Machine Open Width Textile Finishing Stenter

Product Tags:

heat setting stenter

stenter finishing machine

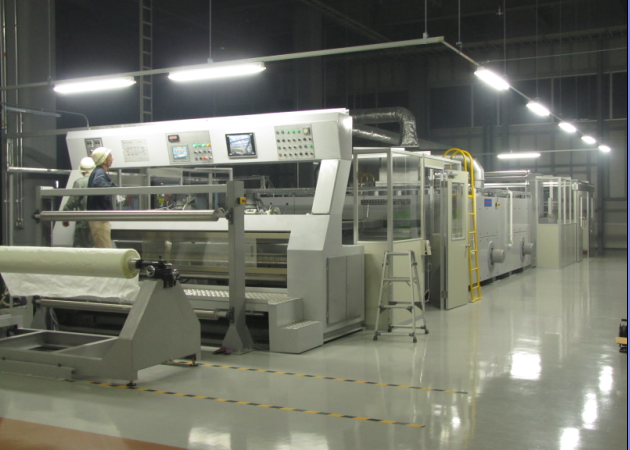

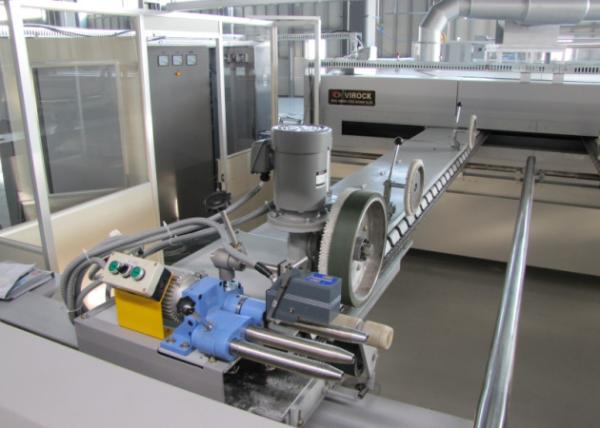

Electricity Heating Fabric Stenter Machine Open Width Textile Finishing Stenter Images
