Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting/ Batching Fabric Exit

Name: Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting Batching Fabric Exit
Brand: VIROCK
Price: 1 USD

Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting/ Batching Fabric Exit Manufactures

Brand Name : VIROCK

Model Number : LVK

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIABLE

Payment Terms : L/C, T/T, D/A

Supply Ability : 4 sets per month

Delivery Time : in 90 days

Packaging Details : Wooden case

Main drive system : double drive

Main drive motor capacity : 11Kw X 2

Fabric exit : Plaiting/ batching

Fabric cooling : Air cooling/water cooling

Chamber circulation motor capacity : 5.5/7.5 Kw

Rail material : steel/iron casted

Rail type : Horizontal

Producing fabric type : knits/woven etc.

Contact Now

Fabric streching & setting stenter , Temperature even , Good thermal insulation

1. Working chart :

Open width entry --- Infrared center device ------J-Scray ---- Padder with various tension applicator --- Weft straightner ---- Screw expanding & overfeeding device --- Edge Photocell & uncurler device --- Pinning-on ---- Chambers for heat setting ---Air-jet cooling --- Pinning-off ----- End section --- Plaiting.

2. Functions of stenter machine:

1) Heat setting is done by the stenter for special 3-mesh textile.

2) Width of the 3-mesh textile is controlled.

3) Moisture of the 3-mesh textile is controlled.

4) GSM of the3-mesh textile is controlled.

5) Fabric is dried by the stentering process.

6) Shrinkage property of the 3-mesh textile is controlled.

3. Stenter Chamber features:

Each chamber 3 meters long, with twin air system, the frame of chamber is made from 4 mm steel plates. The heat- insulating boards thickness is 120mm, filled with insulating material and silicone rubber strips used for sealing. The bottom of the chambers heat-insulating boards thickness 80mm.

Double filter: Each chamber has double filters; it’s easier for machine maintenance.

Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting/ Batching Fabric Exit

Product Tags:

stenter textile machine

heat setting stenter

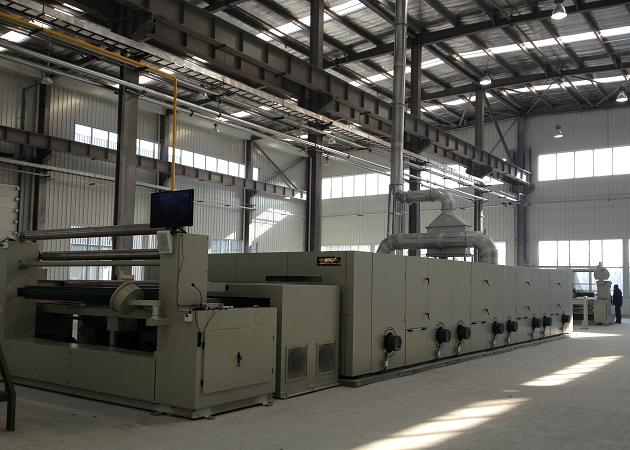

Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting/ Batching Fabric Exit Images
